COM LAC 核心模块系列
研连智能科技 · 工业级产品详细规格
产品图片
规格参数
| 图片 | 型号 | CPU | 芯片组 | BIOS |
|---|---|---|---|---|
|

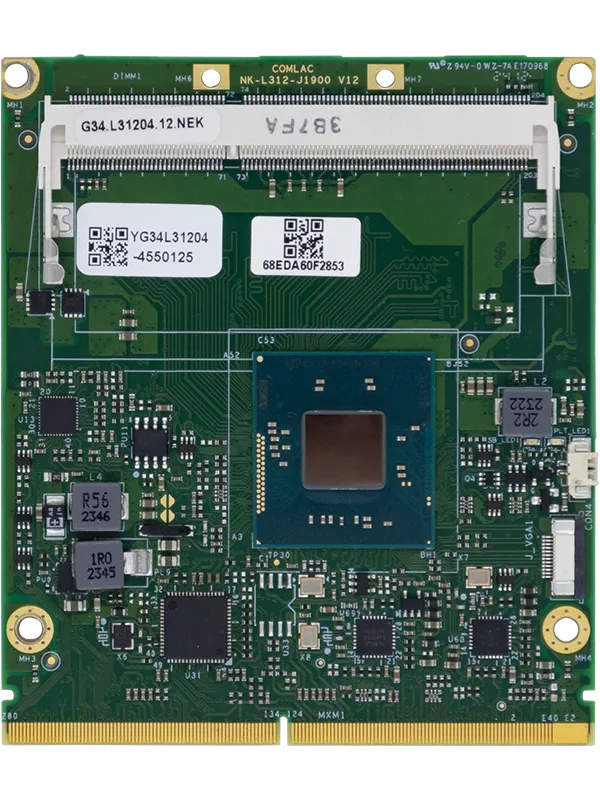

NK-L312-J1900 | Intel® Celeron® J1900 processor 2.0GHz,TDP 10W | Intel® SoC integrated | AMI 64Mb UEFI BIOS |
|

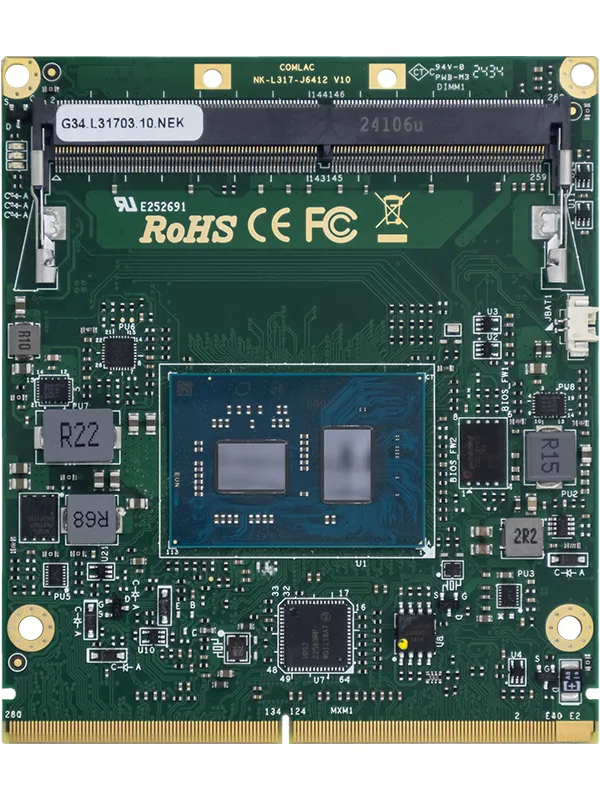

NK-L317-J6412 | Intel® Celeron® J6412 processor, Duad-core, base frequency 2.0GHz up to 2.6GHz , TDP 10W | Intel® SoC integrated | AMI 256Mb UEFI BIOS |
|

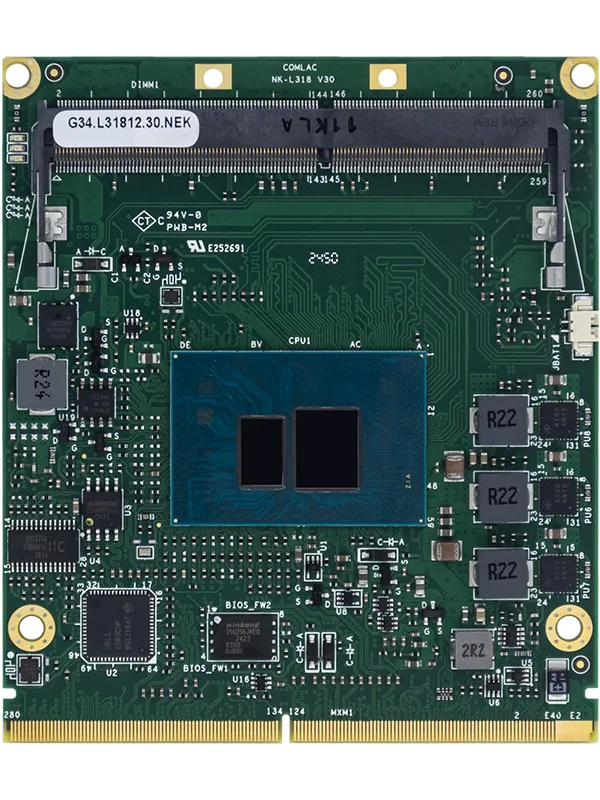

NK-L318-N305/N97 | Intel® Core ™ i3-N305/N97 Alder lake N processor,TDP 15W | Intel® SoC integrated | AMI 256Mb UEFI BIOS |
|

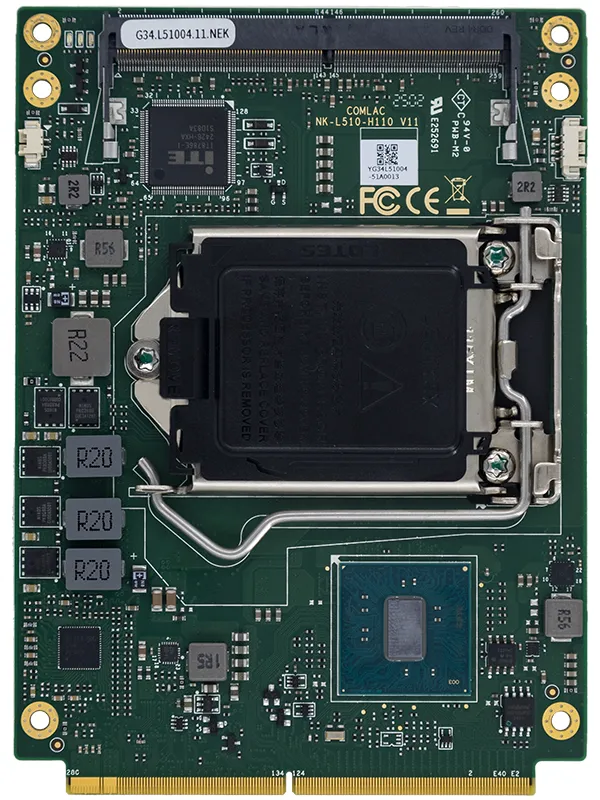

NK-L510-H110 | Intel® 6/7/8/9th Generation Celeron/Pentium/Core-I series LGA1151 processor,TDP up to 65W | Intel H110 | AMI 128Mb UEFI BIOS |
| [图片] | NK-L519 | Intel® Core ™ Ultra 5 Processor 225H (14C14T，18M Cache, up to 4.90GHz，TDP 28W) | Intel® SoC integrated | AMI 256Mb UEFI BIOS |
| [图片] | NK-L520-H510 | Intel® 10/11th Generation Celeron/Pentium/Core-I series LGA1200 processor,TDP up to 65W | Intel®H510 | AMI 256Mb UEFI BIOS |
| [图片] | NK-L530-H610 | Intel® 12/13/14th Generation Celeron/Pentium/Core-I series processor, TDP up to 125W | Intel H610/H610E | AMI 256Mb UEFI BIOS |
| [图片] | NK-L328 | i3-1215UE 6C8T,Base Frequency 1.2GHz up to 4.4GHz,TDP 15W | – | AMI 256Mb UEFI BIOS |
联系我们获取详细报价
产品规格如有变更，恕不另行通知。图片仅供参考，请以实际产品为准。
