ATX 主板
研连智能科技 · 工业级产品系列
| 图片 | 型号 | CPU | 插槽 | 芯片组 |
|---|---|---|---|---|
|

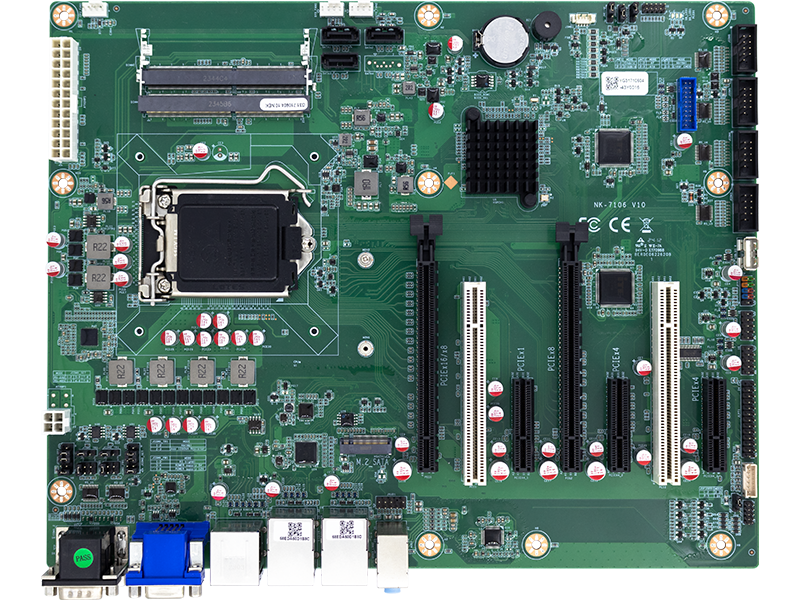

NK-7106 | Intel® 6/7/8/9th generation Celeron/Pentium/Core-I series processor, TDP up to 95W | LGA1151 | Intel Q170/C236 |
 |

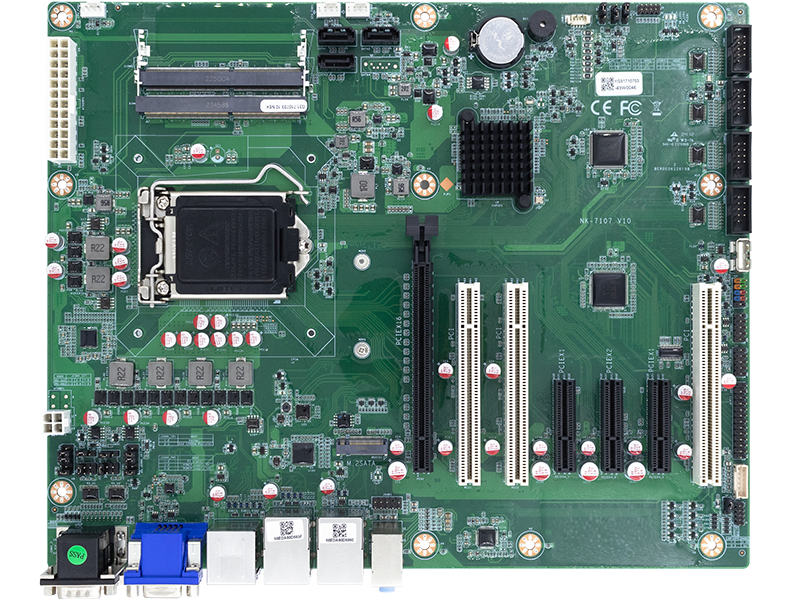

NK-7107 | Intel® 6/7/8/9th generation Celeron/Pentium/Core-I series processor, TDP up to 95W | LGA1151 | Intel H110 |
 |
NK-7205 | Intel® 10/11th Generation Celeron/Pentium/Core-I series processor, TDP up to 125W | LGA1200 | Intel H420E |
 |

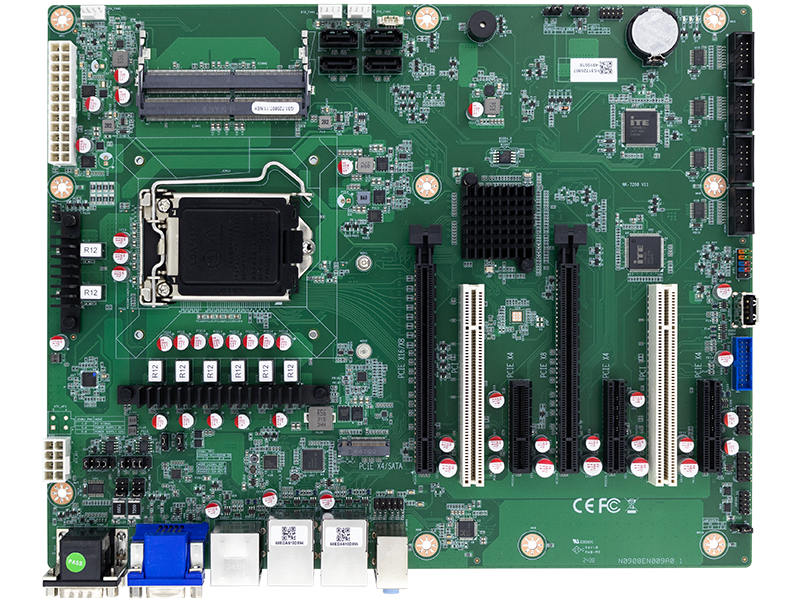

NK-7208 | Intel® 10/11th Generation Celeron/Pentium/CoreI series processor, TDP up to 125W | LGA1200 | Intel Q470/Q470E |
 |
NK-7305 | Intel® 12/13th Generation Celeron/Pentium/CoreI series processor, TDP up to 125W | LGA1700 | Intel H610/H610E |
 |

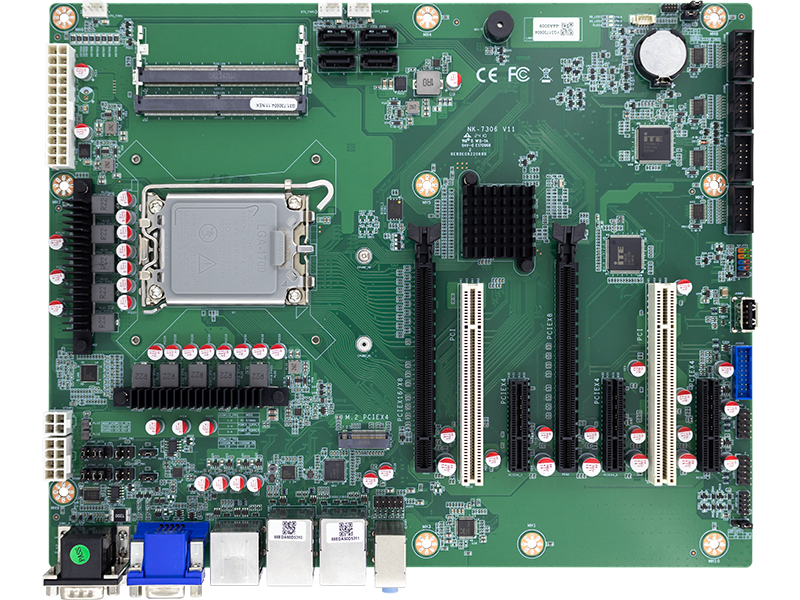

NK-7306 | Intel® 12/13th Generation Celeron/Pentium/Core-I series processor, TDP up to 125W | LGA1700 | Intel Q670/Q670E |
点击型号查看详细规格 | © 研连智能科技
